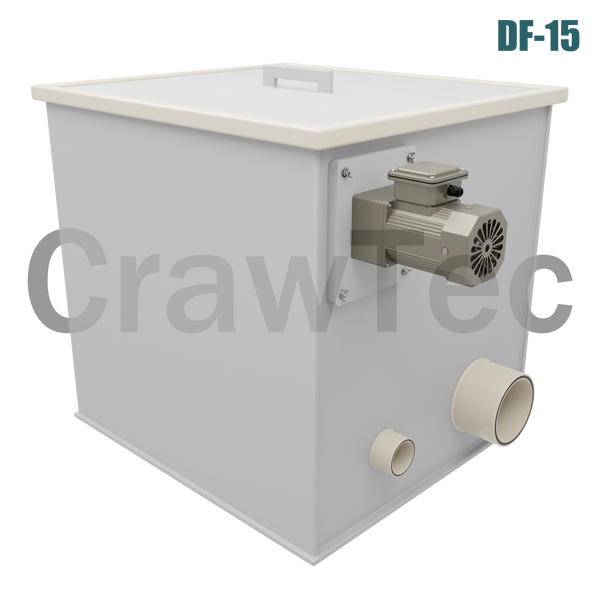

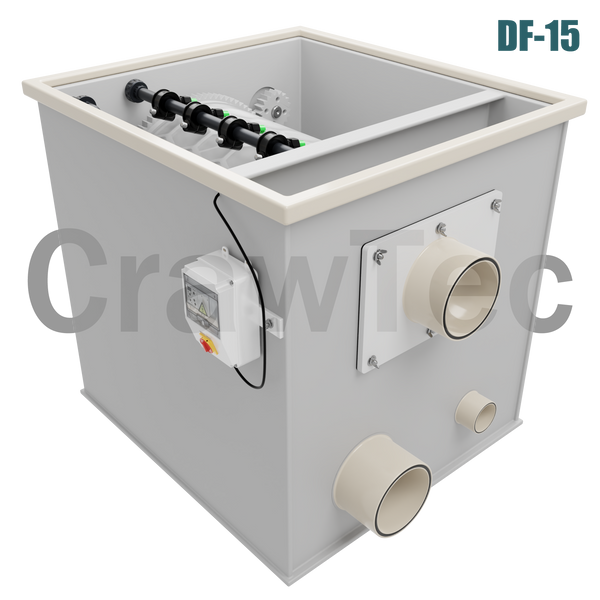

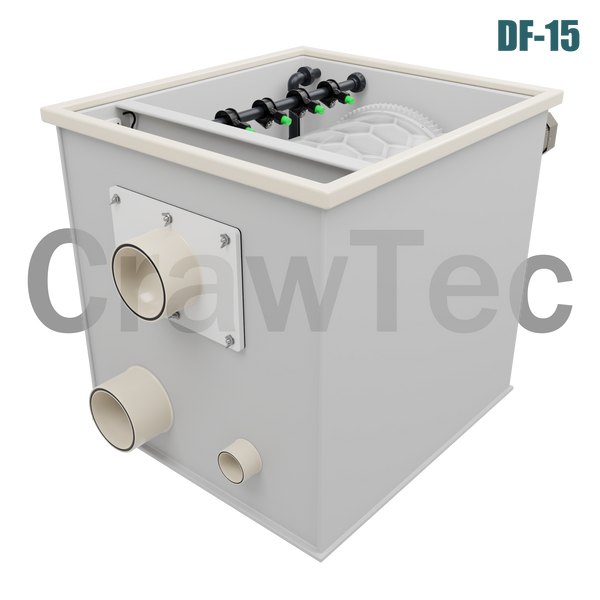

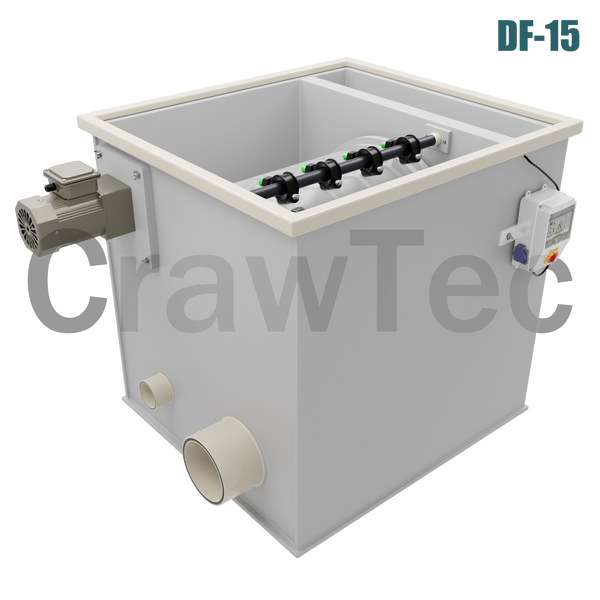

Drum filter for pond and pond 10-15 m³ - reliable water filtration
Water quality plays a key role in intensive fish, shrimp or crayfish farming. The drum filter is an effective solution for mechanical water purification in closed-circuit water systems (CCWS) and ornamental ponds. This model has a throughput capacity of 10-15 m³ and provides stable operation without manual intervention.
How does the drum filter work?

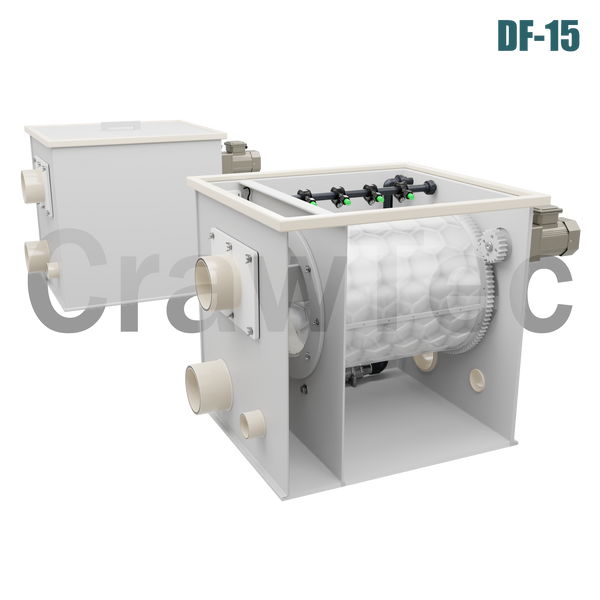

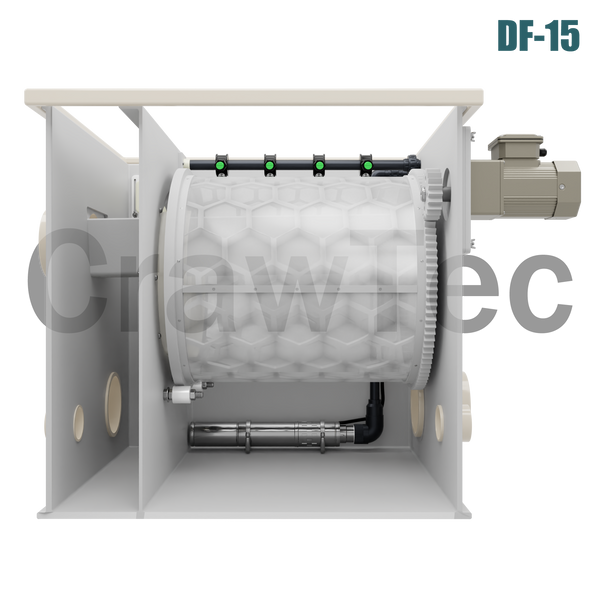

The principle of operation of the filter is based on the retention of mechanical impurities by a stainless steel mesh with 63 micron mesh. Water enters through the inlet connection, the impurities settle on the mesh, and the purified water is discharged through the outlet connection. When the mesh is clogged, the automation starts the flushing process - the drum rotates and the pump flushes the impurities down the drain.
Technical features and advantages
- Compact dimensions (560×500×560 mm) allow the filter to be integrated into various water treatment systems.
- The robust housing made of food-grade polypropylene (8 mm) is resistant to moisture and chemicals.
- The automatic cleaning system eliminates the need for frequent maintenance.
- Two inlet and two outlet connections (110 mm and 50 mm) allow easy integration with other elements of the ROM.
- The 63 µm stainless filter mesh traps even small particles to improve water quality.
- A 40 W gearmotor ensures smooth drum rotation, saving energy.
- The integrated rinsing pump cleans the mesh quickly and efficiently.
- What systems are it suitable for?
The CrawTec drum filter is ideal for:
- Closed circuit water supply (CCW) installations;
- Industrial and ornamental ponds;
- Fish farms where it is important to maintain clean water;
- Australian crayfish and Rosenberg shrimp farming systems.
Minimal maintenance costs
Thanks to the automatic cleaning system, the filter does not require constant monitoring. The operator only needs to periodically check the condition of the drum and the wash water drainage system.
Customised filters
This model is just one of our standard designs. If you require a different filter capacity or size, we can customise the equipment. CrawTec designs and manufactures filters for all types of RHW applications, from small farms to industrial complexes.
